What Is Powder Coating? Process and Line Components Explained
Learn how powder coating works — from electrostatic application to oven curing — and what components make up a complete line. Expert guide by OptiFinish India.
Powder coating is one of the most widely used industrial finishing processes in India and globally. It provides a durable, attractive, and environmentally responsible coating on metal products — from automotive components and steel furniture to architectural sections and electrical enclosures.
This article explains what powder coating is, how the process works, and what the key components of a powder coating line are — a practical reference for manufacturers evaluating powder coating for the first time, or operators seeking a clearer understanding of their existing process.
What Is Powder Coating?
Powder coating is a dry finishing process where finely ground particles of thermosetting resin and pigment are electrostatically applied to a prepared metal surface and then cured in an oven to form a hard, continuous film.
Unlike liquid paint, which uses solvents as a carrier, powder coating uses no solvents. The powder is applied dry, adheres electrostatically to the grounded metal part, and is then chemically crosslinked by heat. The result is a coating that is harder, more durable, and more environmentally compliant than most liquid paint alternatives.
How Does Powder Coating Work?
Step 1: Surface Preparation (Pre-Treatment)
The metal surface must be clean, degreased, and chemically prepared before powder coating. Contamination — oil, rust, mill scale, or surface oxides — prevents the powder from adhering and leads to early coating failure.
Pre-treatment in an Indian powder coating plant typically involves:
- Alkaline degreasing — removes oils and greases
- Water rinse — removes degreaser residues
- Phosphating — iron or zinc phosphate conversion coating for adhesion
- Passivation rinse — seals the phosphate layer
The quality of pre-treatment is the single most important factor in powder coating durability. No amount of premium coating equipment compensates for poor surface preparation.

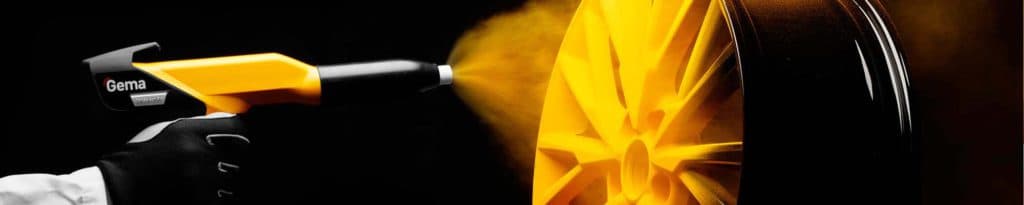

Step 2: Powder Application
After pre-treatment and drying, the cleaned part is hung on a grounded conveyor or rack and moved into the spray booth. An operator or automatic gun applies the charged powder to the surface.
The electrostatic gun imparts a high-voltage charge (typically 60–110 kV) to the powder particles as they leave the gun. The grounded metal part attracts these charged particles, which deposit and hold on the surface by electrostatic force — even on vertical and overhead surfaces, and into recessed areas (Faraday cages).
Step 3: Curing in the Oven
After powder application, the powder-coated part is moved into the curing oven. At temperatures between 160°C and 200°C (depending on powder chemistry), the powder melts, flows to form a smooth film, and chemically crosslinks into a durable thermoset coating.
Cure temperature and dwell time depend on the powder chemistry — polyester, epoxy-polyester hybrid, and pure epoxy powders each have specific cure schedules. Always follow the powder manufacturer's data sheet. Correct curing is critical: undercured coatings are soft and have poor chemical resistance, while overcured coatings become brittle and discoloured. Oven temperature profiling — measuring actual part temperature against set temperature — is essential for confirming that cure conditions are met.
Step 4: Cooling and Unloading
After exiting the oven, parts cool to handling temperature (typically below 60°C) before being unloaded from the conveyor or rack for inspection, packing, and dispatch.
Components of a Powder Coating Line
A complete powder coating line — whether manual, semi-automatic, or fully automatic — comprises the following key systems:
1. Pre-Treatment (PT) System
Multi-stage chemical cleaning and conversion coating. In an automatic conveyorised line, parts pass through spray or immersion tanks in sequence.
2. Dry-Off Oven
After the PT line, parts are dried before powder application to remove moisture that would interfere with powder adhesion.
3. Powder Coating Booth
The enclosed chamber where powder is applied. The booth controls airflow to contain overspray and recover unused powder. OptiFinish manufactures custom spray booths and supplies GEMA automatic booths in India.
4. Powder Management System
Handles powder feed to the guns, recovery of overspray, sieving to remove agglomerates, and return of recovered powder to the supply circuit. The GEMA OptiCenter is the leading powder management system for automatic lines, consolidating all these functions into one integrated unit.
5. Curing Oven
Thermally cures the applied powder at the correct temperature and dwell time. OptiFinish designs and manufactures custom curing ovens for powder coating plants across India — in batch configurations for smaller operations and conveyorised tunnel configurations for continuous production.
6. Conveyor System
In continuous production lines, an overhead conveyor transports parts through each stage at a controlled speed. Line speed directly determines plant throughput and must be matched to part dimensions, hang spacing, and oven residence time requirements.
7. Powder Coating Guns
The application tool — GEMA manual guns and GEMA automatic guns are the industry standard for both manual and automatic lines. For automatic conveyorised plants, guns are mounted on reciprocators to maintain consistent vertical coverage across the part profile.
Powder Coating in India
Powder coating has become the dominant finishing process for metal products in India across automotive, furniture, agricultural equipment, electrical enclosures, and general fabrication sectors. The combination of durability, environmental compliance (no VOC emissions), and operational efficiency makes it economically compelling at most production scales.
OptiFinish (Value Added Coating Solutions Pvt. Ltd.) designs and builds complete powder coating plants in India — from basic manual setups to fully automatic conveyorised lines. Our Greater Noida facility serves customers across Delhi-NCR, UP, Haryana, Maharashtra, Gujarat, and other manufacturing regions.
Contact OptiFinish to discuss your powder coating plant requirements or to get a design proposal for your specific application.
