What is the GEMA OptiFlex Pro manual powder coating gun?

The GEMA OptiFlex Pro is a range of manual electrostatic powder coating guns featuring MagicControl 4.0 technology — offering programmable kV and µA settings, ergonomic grip, and superior charging performance for manual powder coating applications.

How do I get GEMA manual guns serviced in India?

OptiFinish is an authorised GEMA service partner in India — providing supply, commissioning, spare parts, and after-sales support for GEMA OptiFlex Pro manual guns. Contact OptiFinish at +91-96434-03374.

What is MagicControl 4.0 on GEMA manual guns?

MagicControl 4.0 is GEMA's proprietary gun control technology that allows operators to program and store up to 10 spray jobs with defined kV, µA, and powder output settings — eliminating rework from inconsistent manual settings.

Authorised PartnerGEMA Switzerland

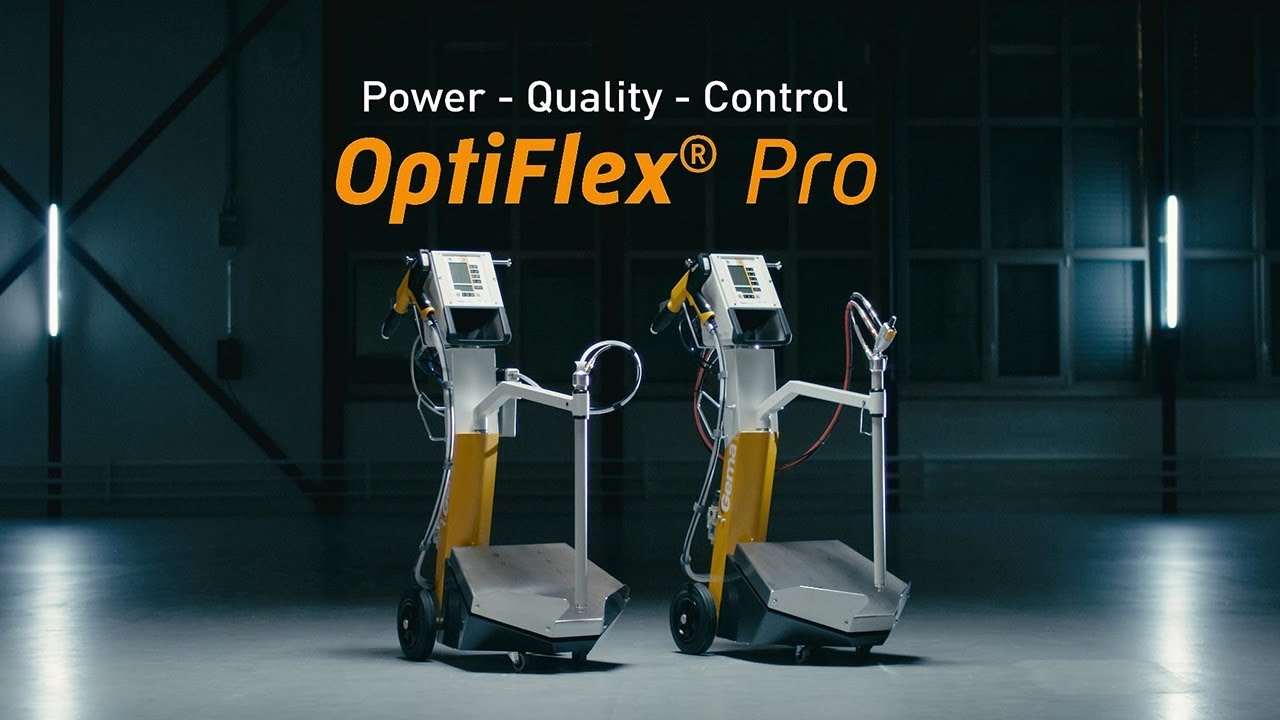

OptiFlex Pro Series — Gravity / Box / Hopper Fed

Manual powder
coating gun.
Swiss standard.

Name: OptiFinish
Address: K-288, Q-21 (GF & FF), SITE-V, Surajpur Industrial Area, Greater Noida, Uttar Pradesh, 201306, IN
Telephone: +91-96434-03374
Price range: ₹₹₹
Rating: 4.8

GEMA's OptiFlex Pro is the world reference for manual electrostatic powder coating guns — covering quick colour change, high-output production, and standard all-round use. Supplied and supported in India by OptiFinish.

35 sec

Fastest colour change

600 g/min

Max powder output

3 Models

Pro Q · Pro F · Pro C

Get a Quote →

Why it matters

Manual application
should never be the weak link.

In a well-run powder coating line, the gun is where quality is made or lost. Inconsistent kV, poor colour-change discipline, and slow cleaning routines cost finish quality and production time every shift. The OptiFlex Pro eliminates all three.

Fastest colour change in class

Pro Q changes colour in 35 seconds with MagicPlug® tool-free disassembly — keeping multi-colour batch lines moving.

Programmable kV and µA control

MagicControl 4.0 lets the operator set and recall the exact electrostatic parameters for each powder type — no guesswork, consistent results across shifts.

Handles every powder type

Standard epoxy, metallic, thermoplastic, and hot melt formulations — the OptiFlex range covers all powder classes used in Indian production.

Three models — one system

Choose your OptiFlex Pro

Quick Colour Change

Colour change in 35 seconds.

The Pro Q is built for operations running multiple powder colours daily. MagicPlug® tool-free disassembly lets the operator strip the gun for cleaning in seconds — the fastest colour changeover in its class. Box-fed or hopper-fed configurations available.

Colour change time35 seconds (fastest in class)

Feed systemBox-fed or hopper-fed

DisassemblyMagicPlug® — tool-free

Best forJob coaters, custom colour shops

Enquire about OptiFlex Pro Q →

The process

How electrostatic powder
application works

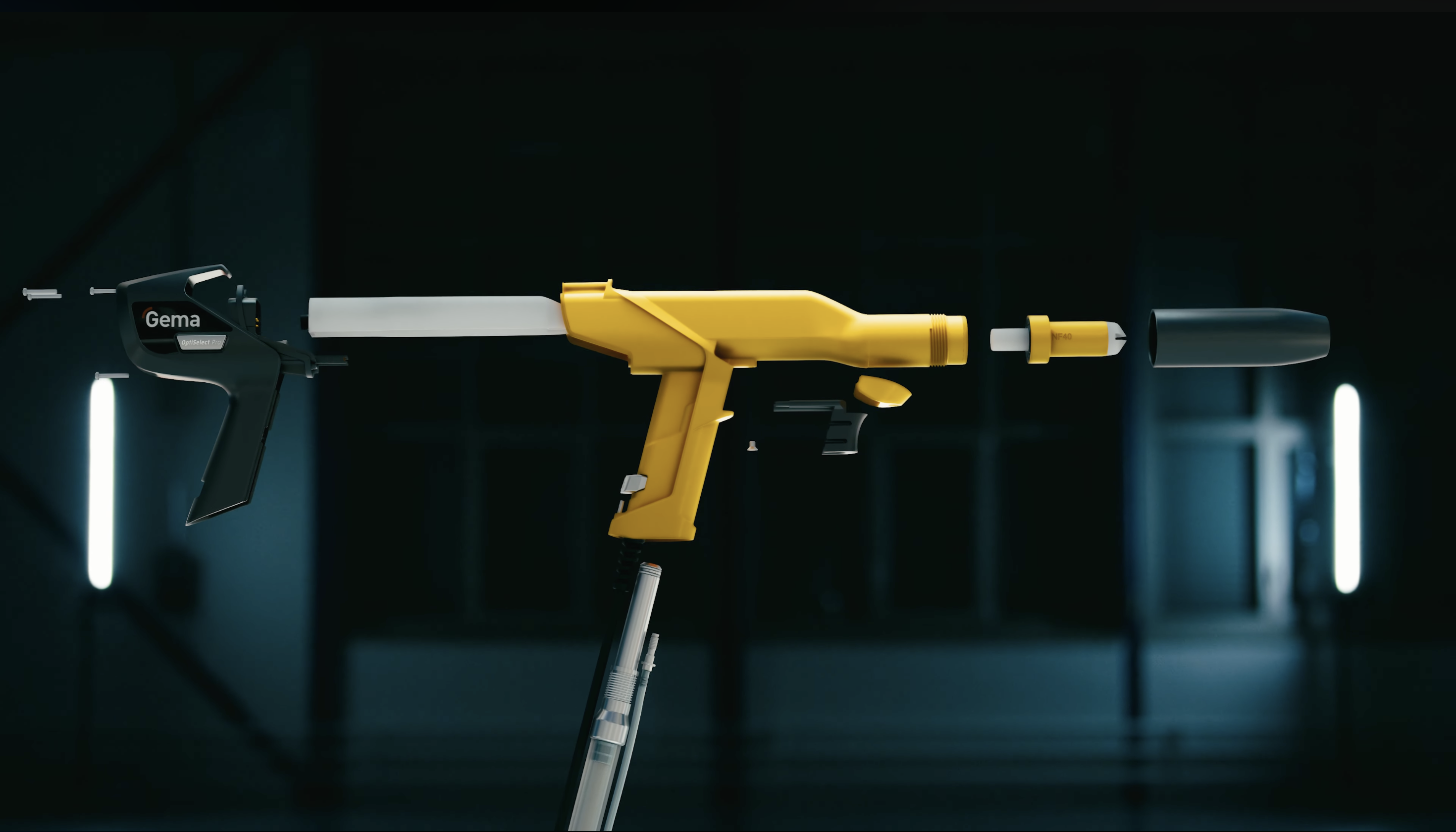

01 — Powder fed via Venturi

Powder coating material is drawn from the hopper or box feed through a Venturi system — pressurised air creates suction that pulls the powder into the gun barrel at a consistent, controlled rate.

Where it fits

The manual gun in your line

Pretreatment

PT Line

→

Dry-off Oven

Pre-heat

→

Powder Booth

Manual Gun here

→

Curing Oven

180–200°C

→

Inspection

Off-load

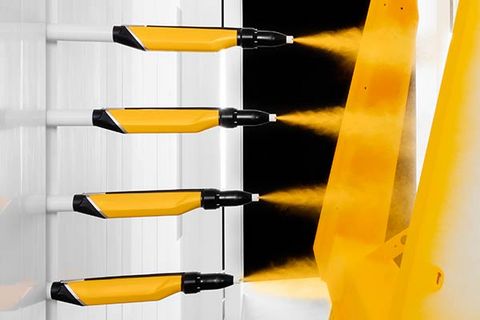

The OptiFlex Pro is the primary application tool in the powder spray booth — positioned between the dry-off oven and the curing oven. In manual lines, the operator controls gun angle, distance, and traverse speed. In batch automatic setups, the manual gun can be paired with a ZA01 or GEMA ZA reciprocator for consistent vertical traversal.

Technical data

Full specifications

Model Overview

Pro QColour change in 35 sec; box-fed or hopper-fed

Pro F SprayUp to 600 g/min; high-throughput production

Pro CStandard all-round; gravity / hopper / wall-mount

ChargingMagicControl 4.0 compatible; programmable kV & µA

DisassemblyMagicPlug® tool-free

Powder & Supply

Powder typesStandard, metallic, thermoplastic, hot melt

Feed systemVenturi — pressurised air draw from hopper or box

Connector standardMagicPlug® — compatible with all GEMA peripherals

GeneratorGEMA MagicControl 4.0 / 4.0 Plus

Supplied byOptiFinish — authorised GEMA partner, India

Compatibility & Integration

Works with your existing setup

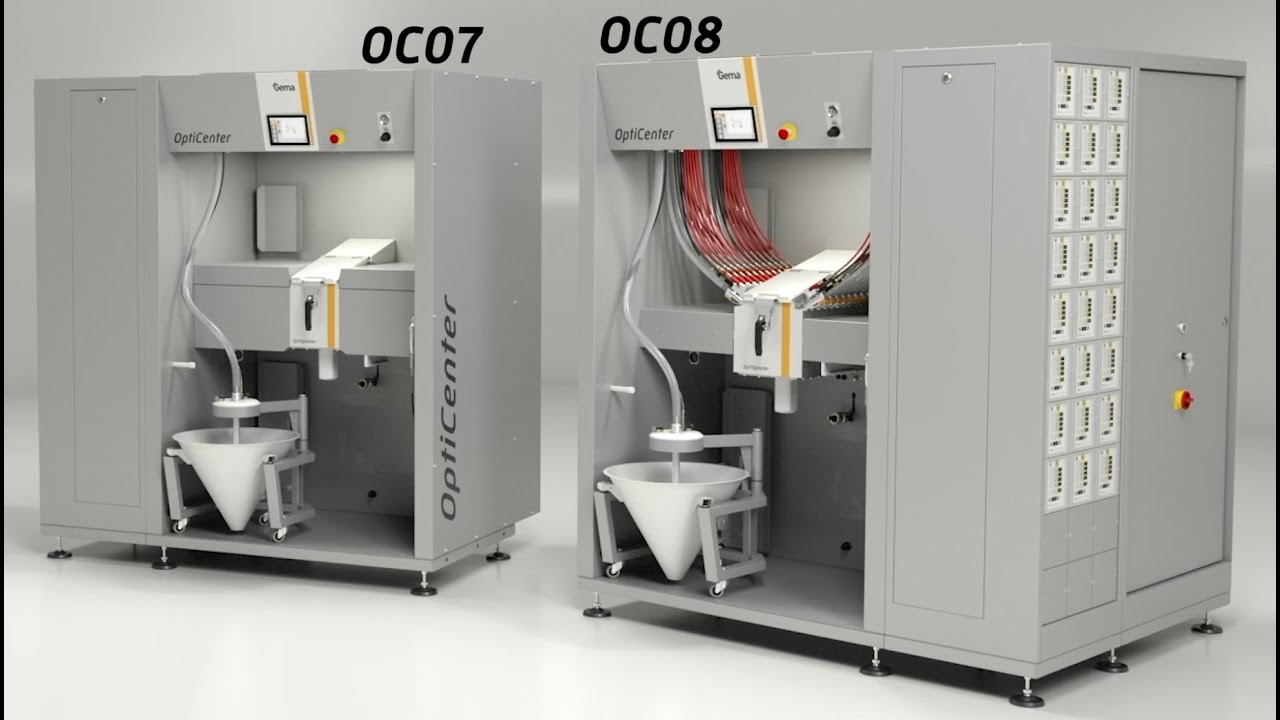

GEMA MagicControl 4.0 / 4.0 Plus generatorsOptiFinish powder spray booths — all typesGEMA OC08 OptiCentre powder managementAll standard powder hopper configurationsGEMA ZA reciprocator series (semi-auto setup)OptiFinish ZA01 vertical reciprocator

Authorised GEMA Partner. OptiFinish is an authorised GEMA partner in India. All equipment is genuine GEMA product — supplied with full Indian after-sales support, service, and spare parts availability.
