Industrial finishing systems.Designed and built by us.

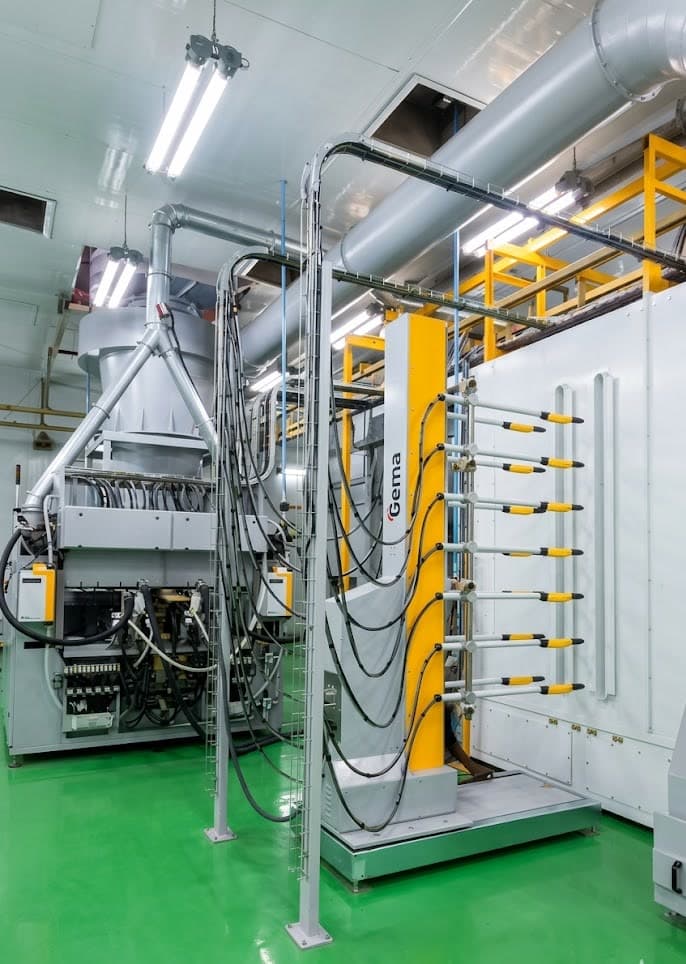

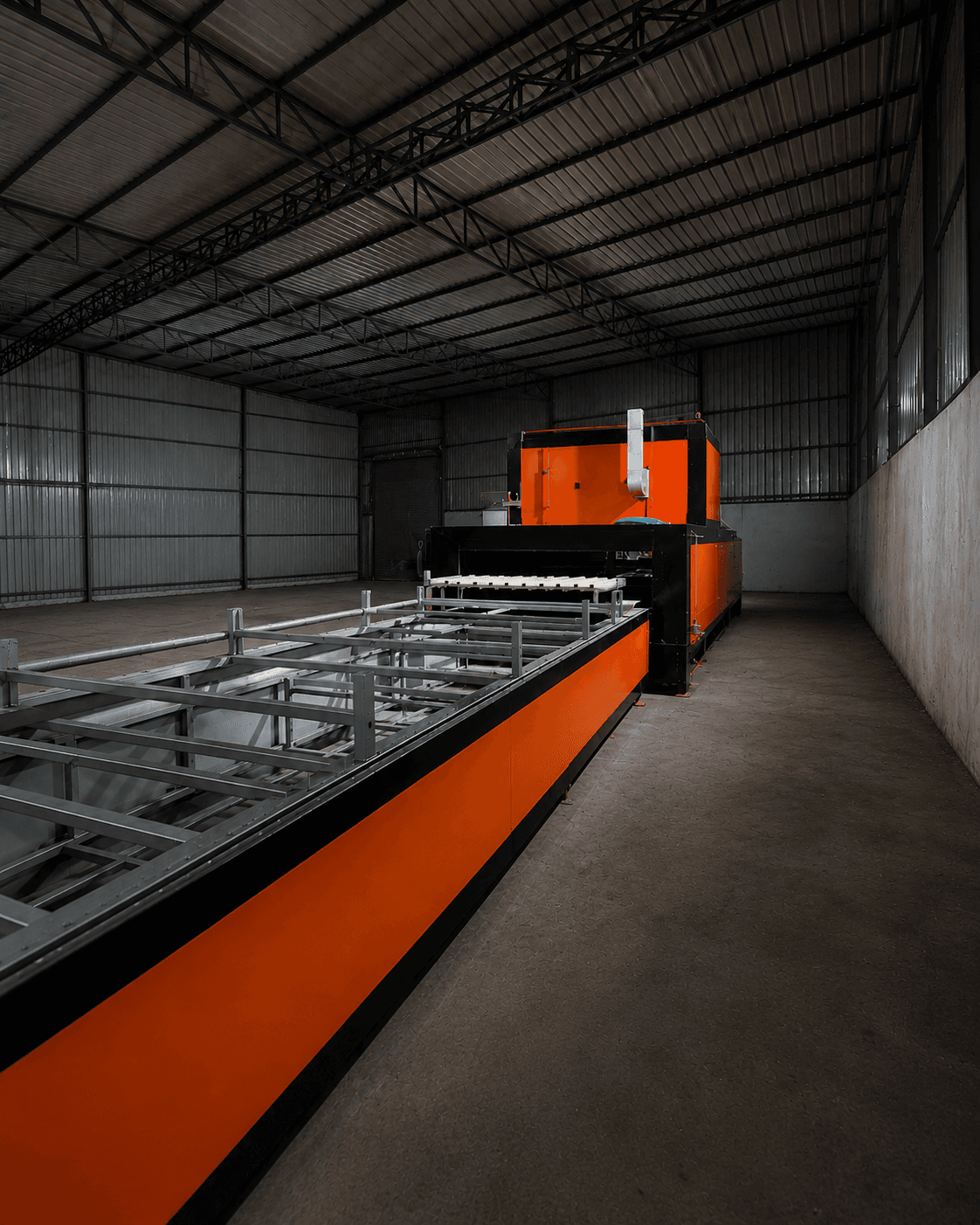

A complete turnkey powder coating line built, assembled, and commissioned by OptiFinish — integrating pretreatment, powder booth, curing oven, and conveyor systems for continuous production.

• Manual and conveyorised configurations; batch or continuous production
• Full line design: PT stages → booth → oven → conveyor → electrical control panel
• Custom-engineered to part size, throughput, and substrate requirements
• 300+ manual plants and 75+ conveyor lines installed across India

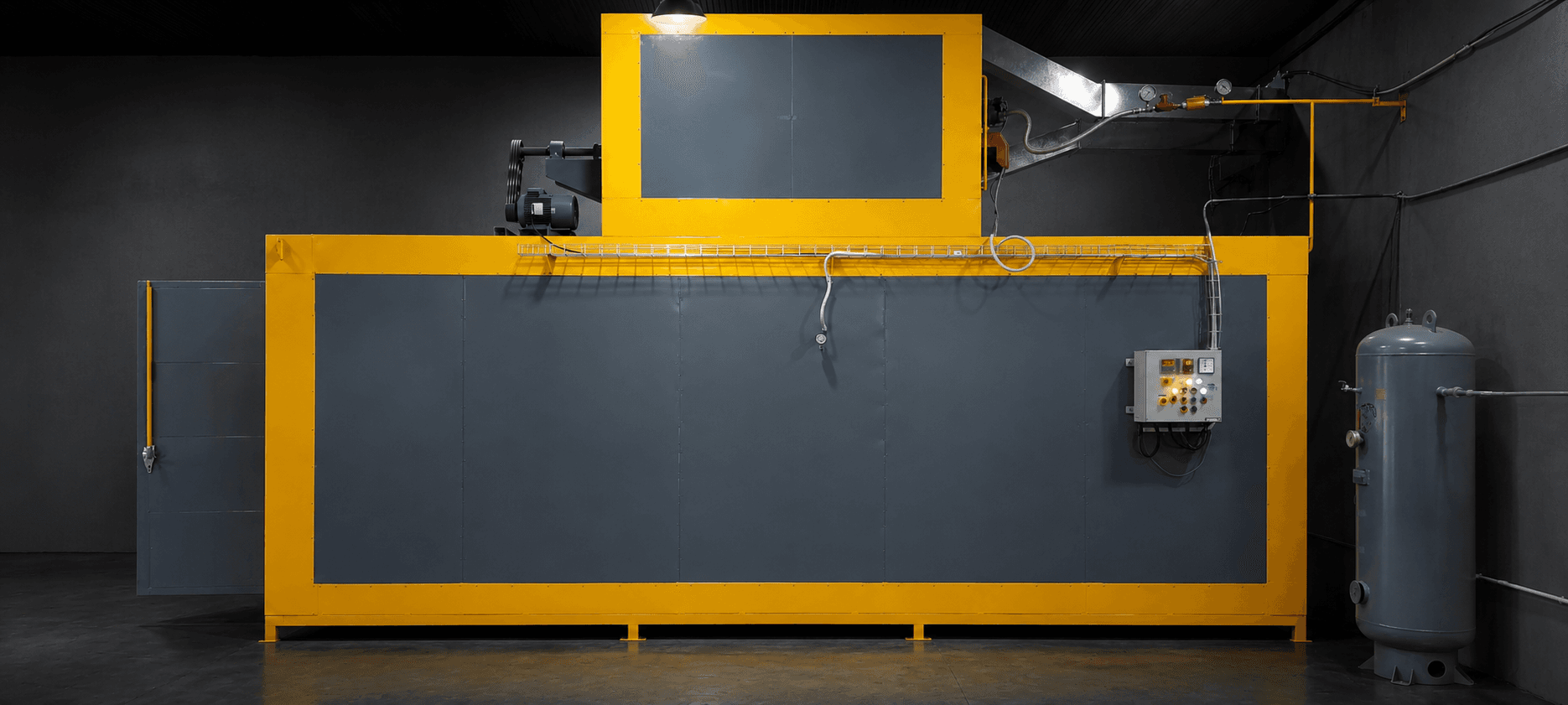

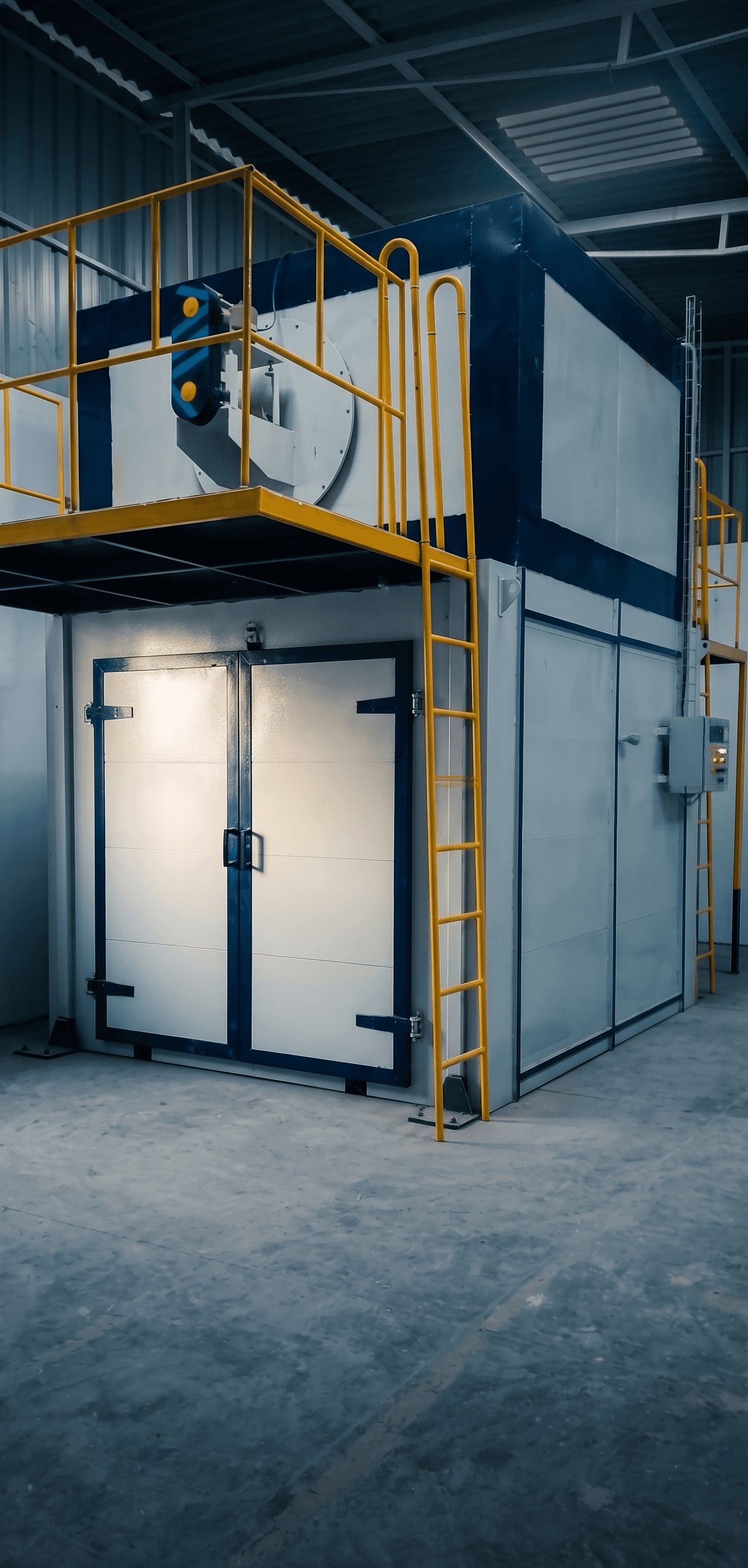

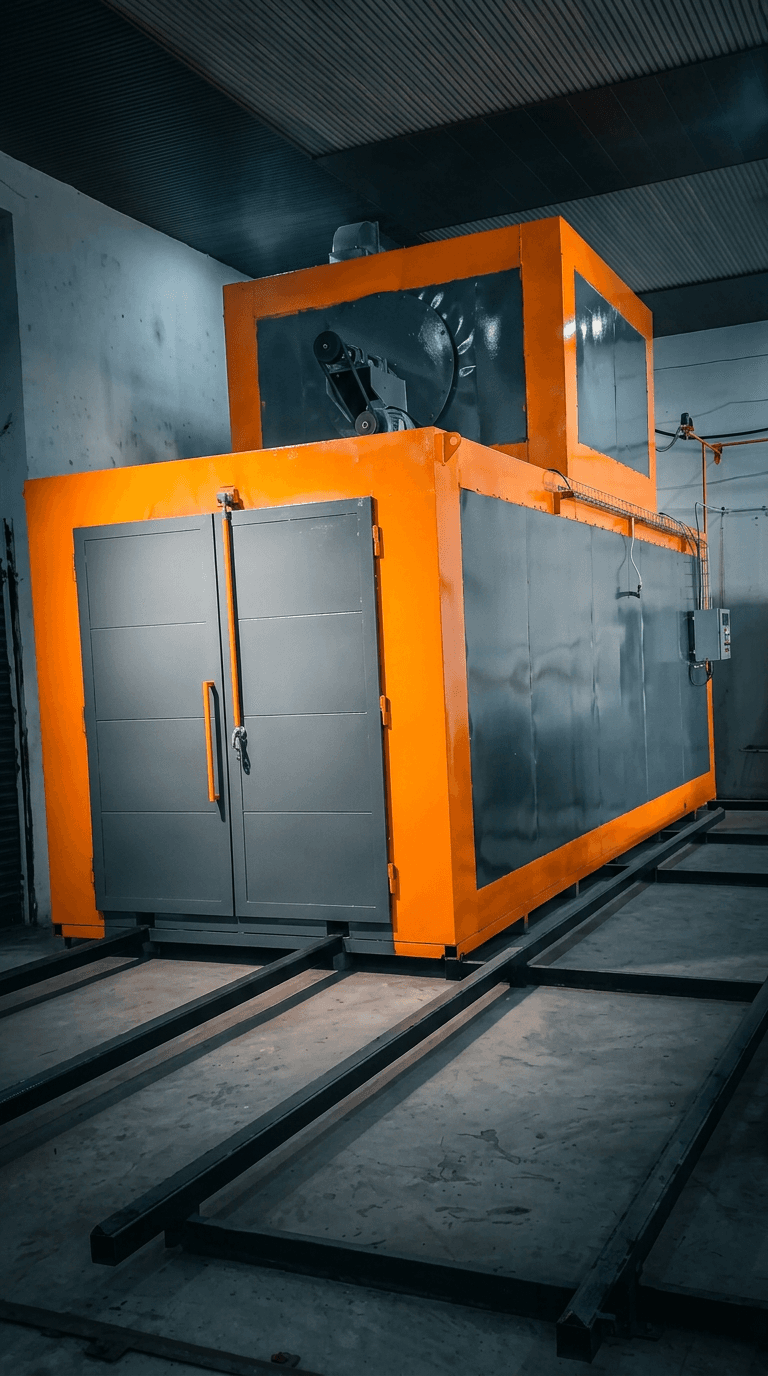

Manufactured in-house to each installation's throughput and part-size requirements — OptiFinish curing ovens deliver consistent temperature uniformity for complete powder cure across steel, aluminium, and fabricated components.

• Operating range: 180–200°C; adjustable to process requirements
• Ecoflame gas burner; 5HP drive; 200mm Rockwool insulation on all panels
• Internal dimensions matched to booth and conveyor layout
• Available as standalone batch ovens or inline with conveyor lines

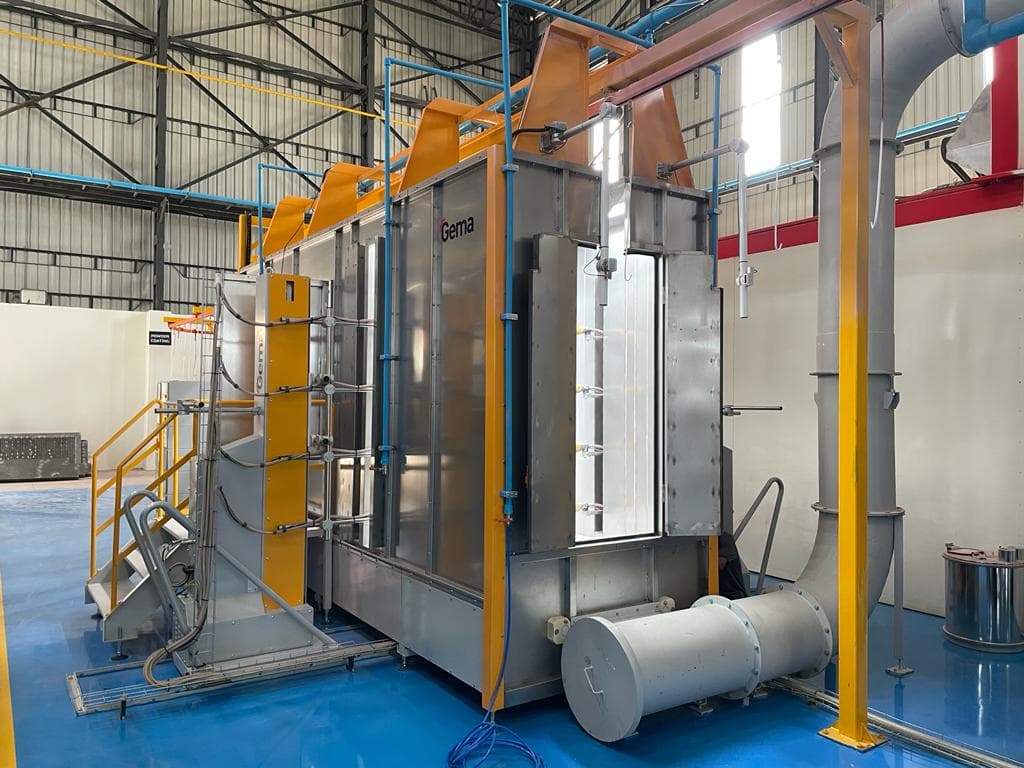

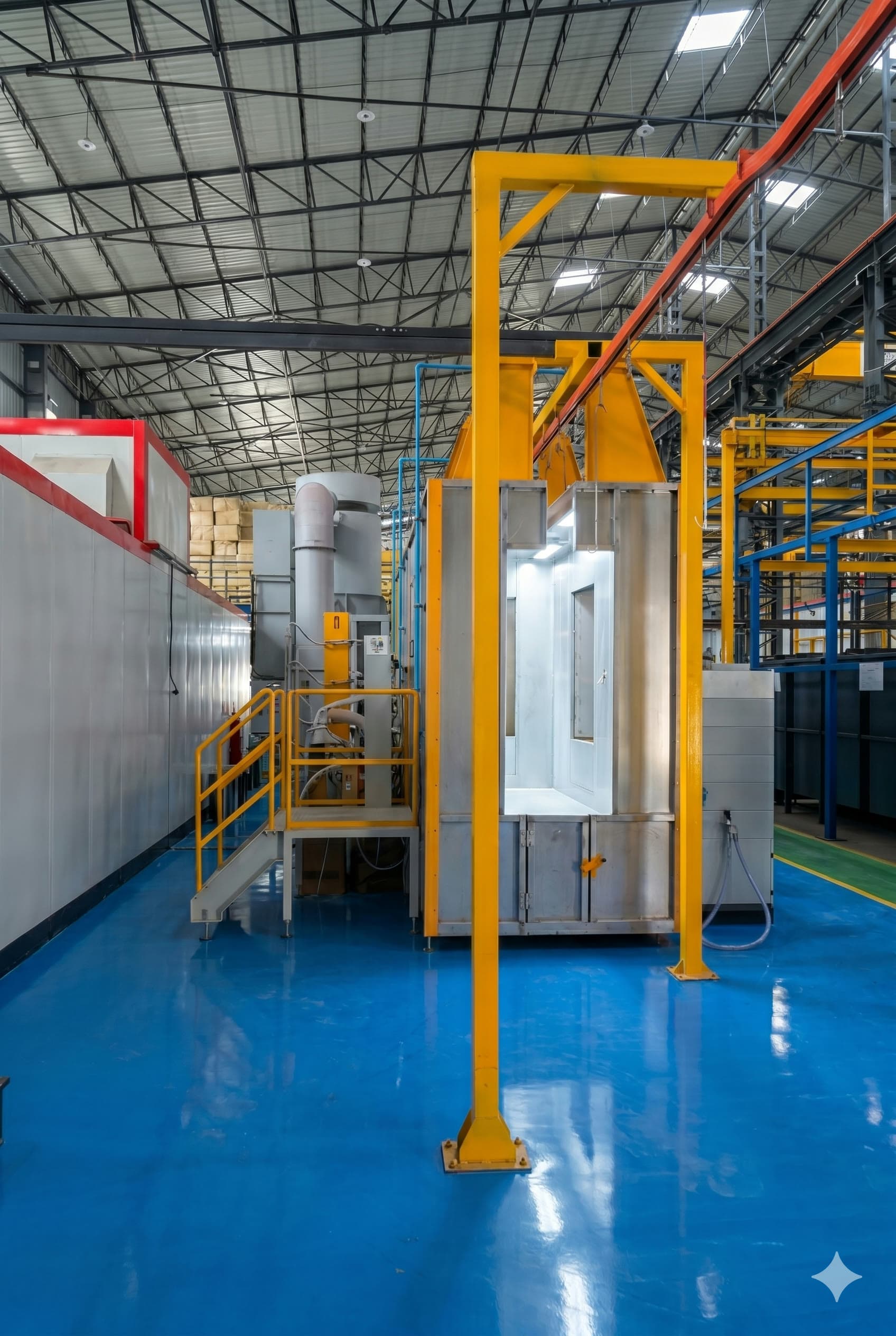

A powder spray enclosure designed for 92–96% powder recovery with an integrated cyclone and bag filter — manufactured in MS or full SS-304 construction to suit production environment and product requirements.

• Standard internal dimensions: 5000 × 1200 × 3050 mm (custom available)
• SS-304 Venturi powder recovery system; 92–96% recovery rate
• 20HP suction motor; Siemens-class electrical panel
• Compatible with GEMA OptiFlex, OptiGun, and all major powder guns

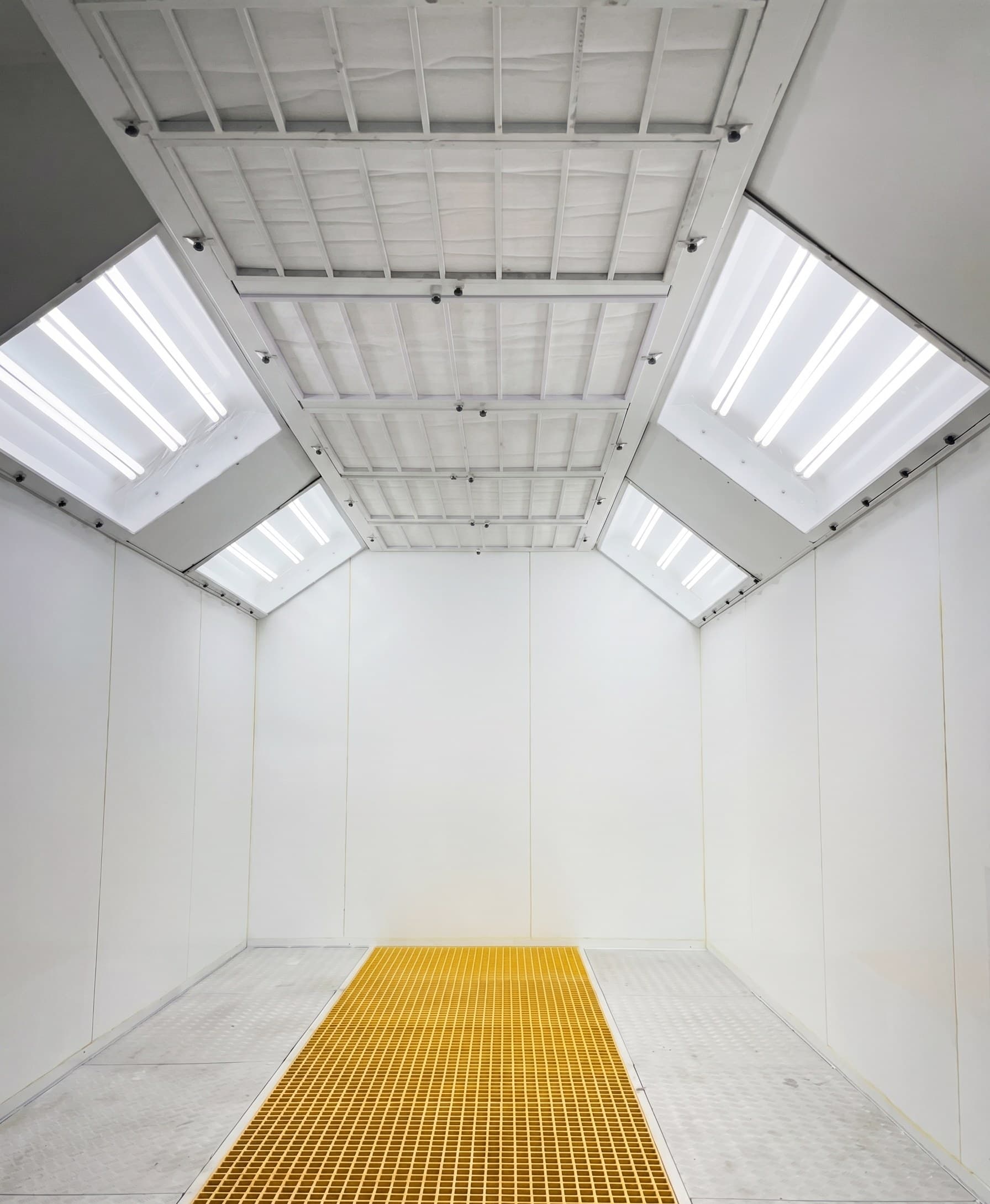

A downdraft liquid spray booth for solvent-based and water-based paint application — with high-velocity air extraction, water wash or dry filter options, and compliant exhaust for CPCB norms.

• Internal dimensions: 2450 × 1500 × 1800 mm (custom available)
• 7000 CMH airflow; 5HP suction; MS sheet construction
• Water wash or dry filter for paint mist capture
• Automotive, wood lacquering, industrial parts, and high-production paint lines

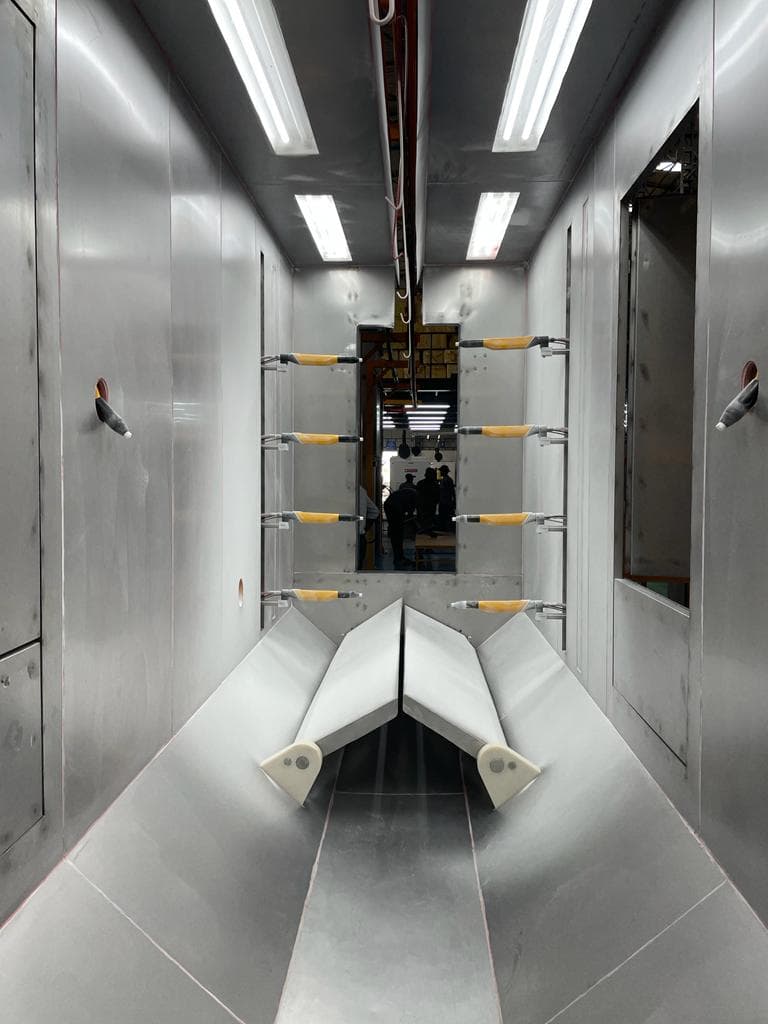

A fully stainless-steel powder coating booth designed for clean environments, food-adjacent industries, and operations requiring easy washdown — zero-rust construction with full powder recovery.

• Full SS-304 construction: panels, duct, Venturi, hopper, and frame
• Pollution-free operation: 92–96% powder recovery, clean exhausts
• Suitable for pharmaceutical, food equipment, medical, and precision engineering
• Quick colour change capability with dedicated recovery separation

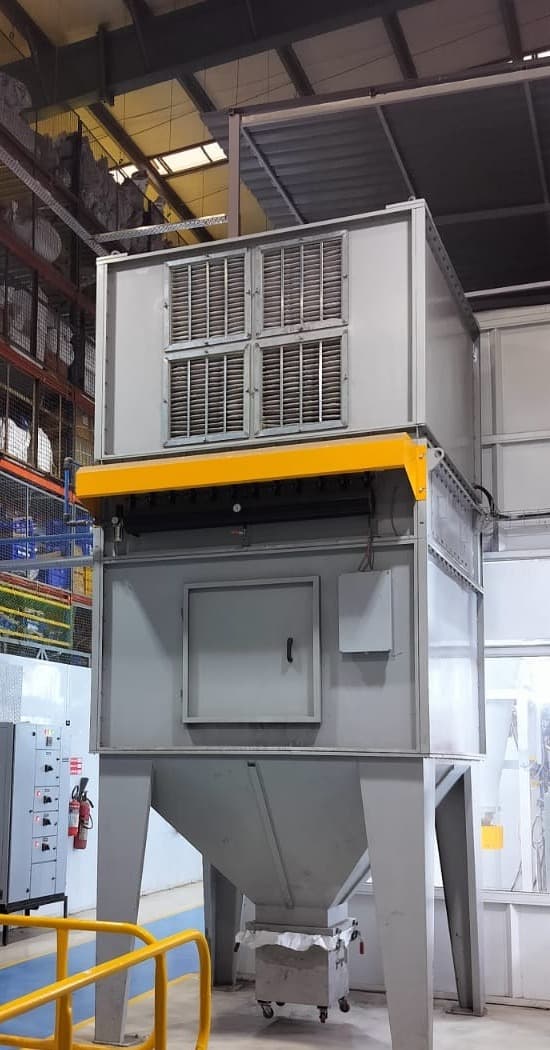

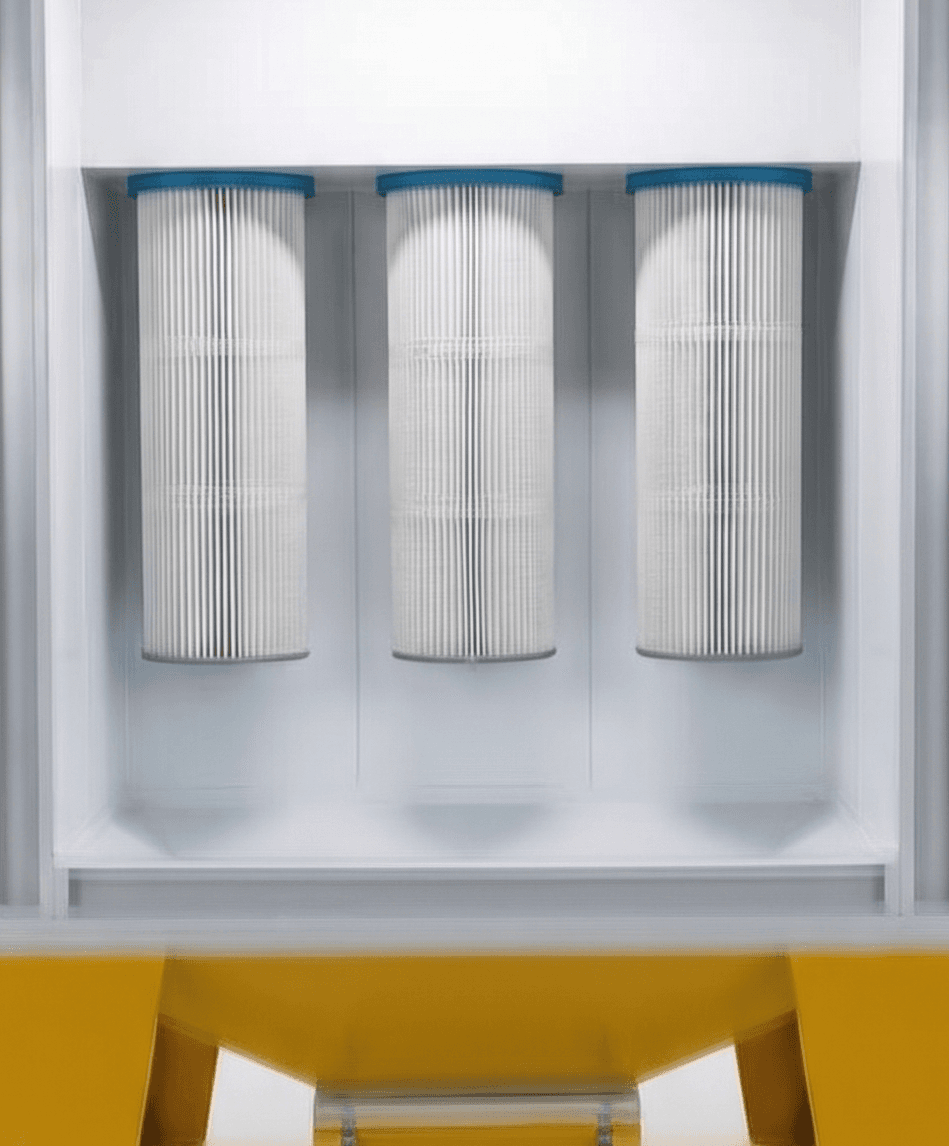

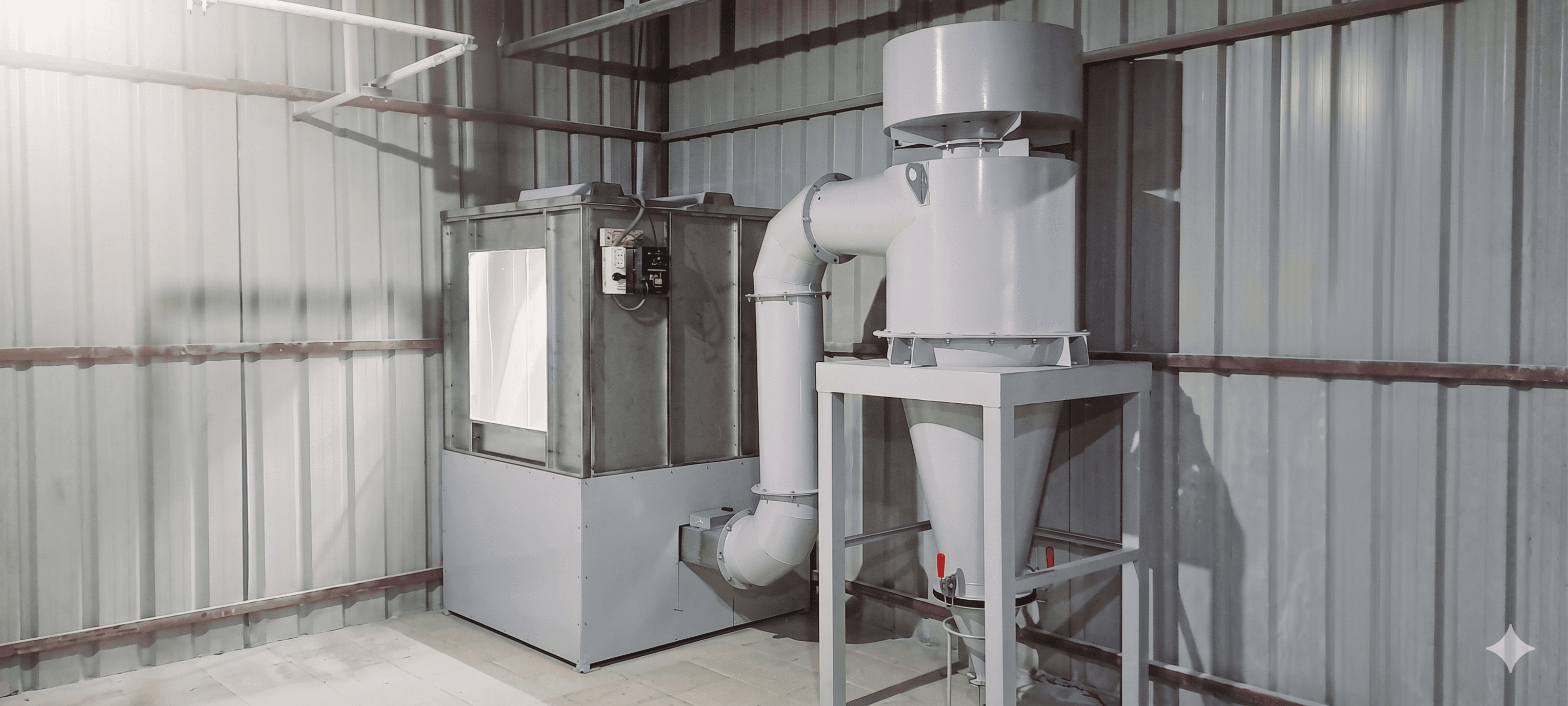

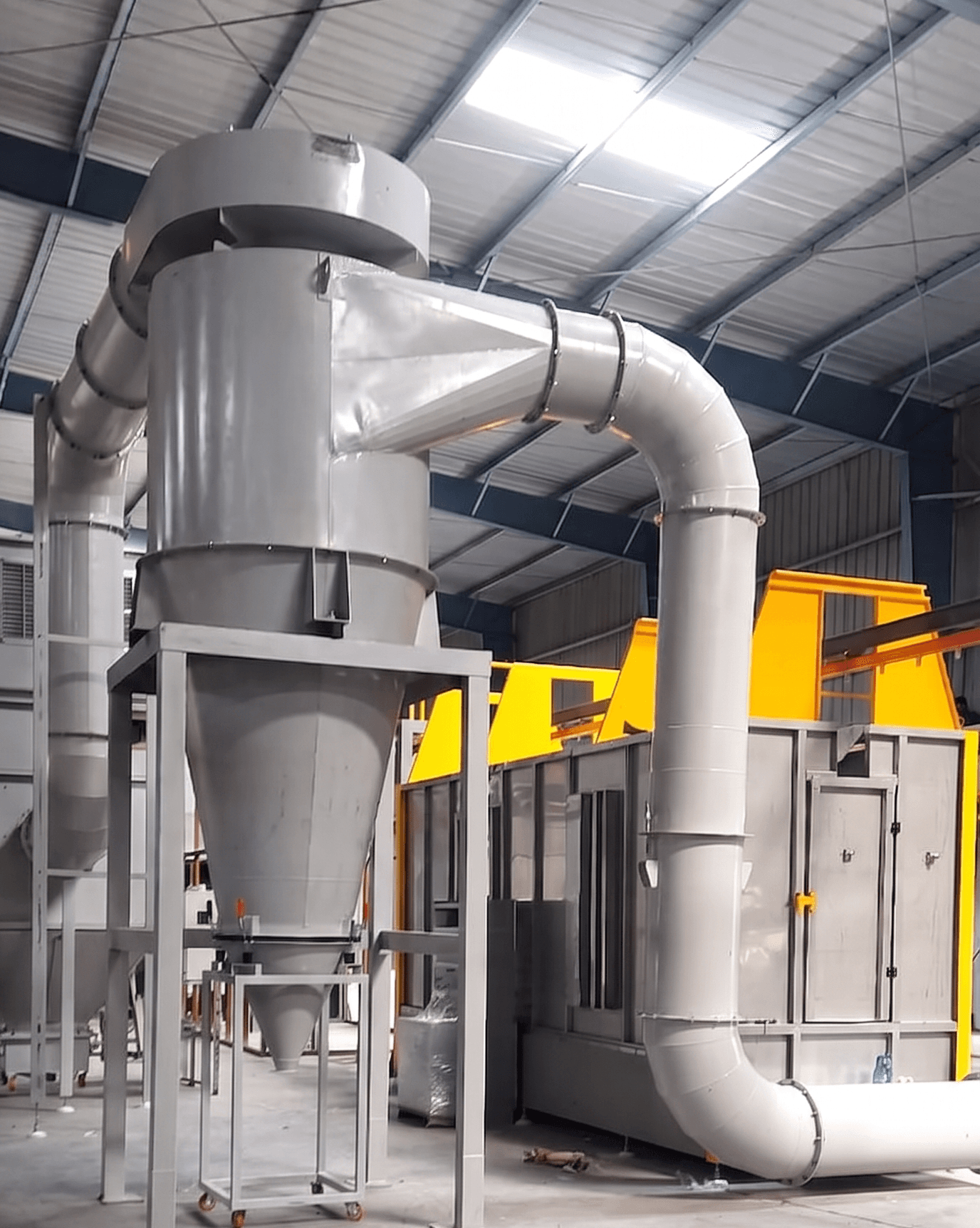

A modular powder recovery and filtration system — deployed as a standalone unit or integrated within an OptiFinish booth — delivering 92–96% powder reclaim across a wide airflow range.

• Airflow range: 3,000–32,000 CMH (sized to booth and production load)
• 92–96% cyclone powder recovery; secondary bag filter for clean exhaust
• Compatible with metallic, textured, and fine-particle powder grades
• Modular design for easy maintenance and filter replacement

A multi-stage pretreatment system designed to prepare steel, aluminium, and galvanised substrates for maximum powder adhesion — from simple 3-stage iron phosphating to full 7-stage zinc phosphate systems.

• 3-stage to 7-stage configurations: degreasing, phosphating, passivation, DI rinse
• Spray tunnel or dip tank design depending on part geometry and throughput
• Electric or steam heating; full MS/SS tank options
• Integrated with conveyor or standalone batch line

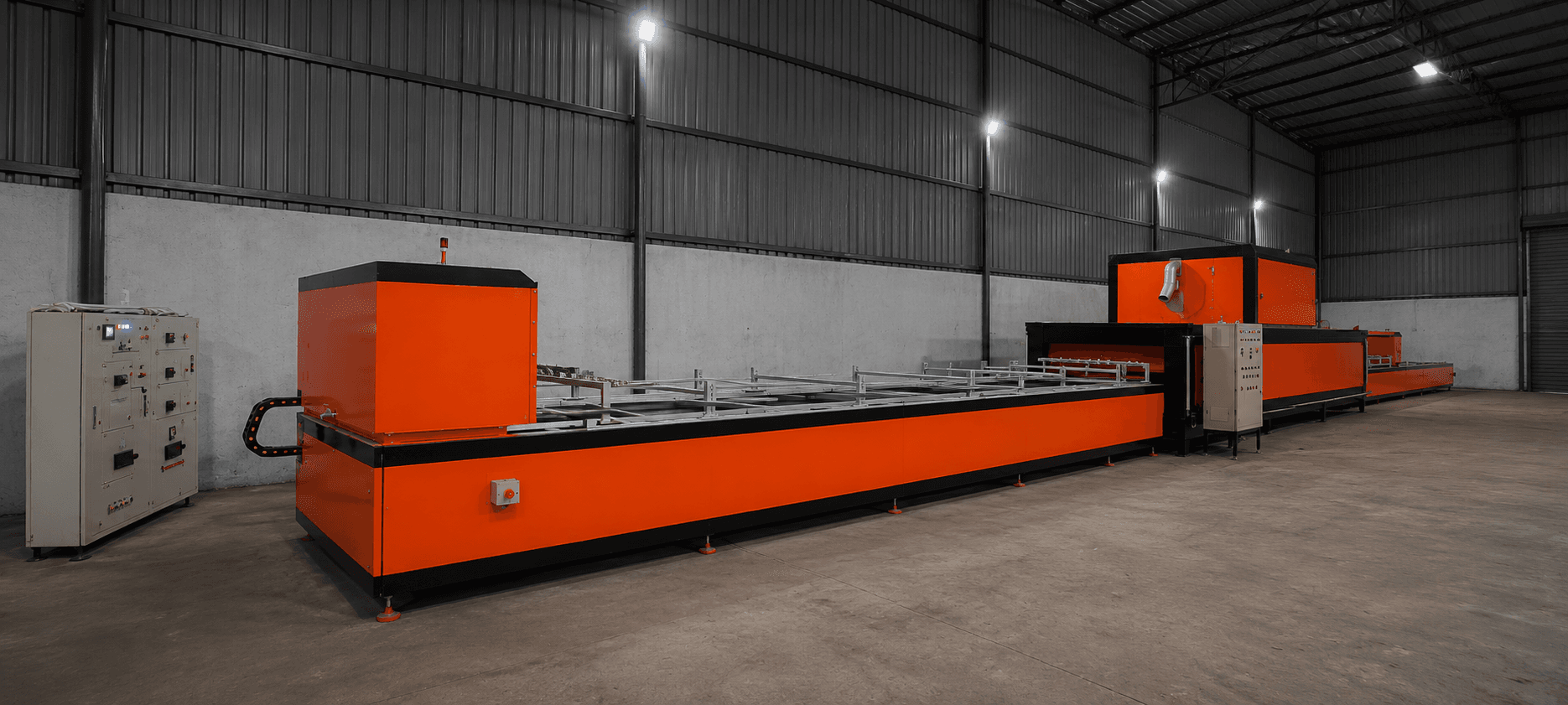

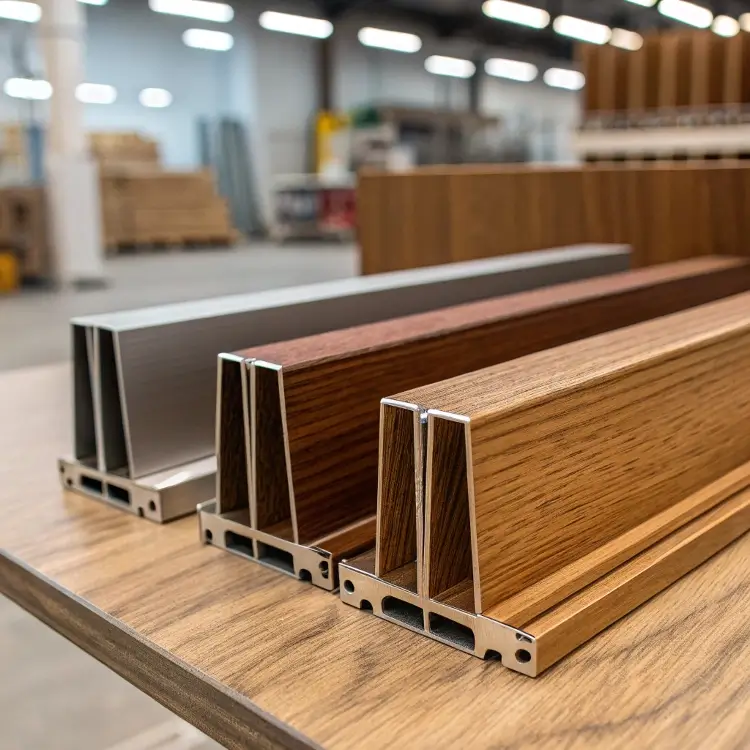

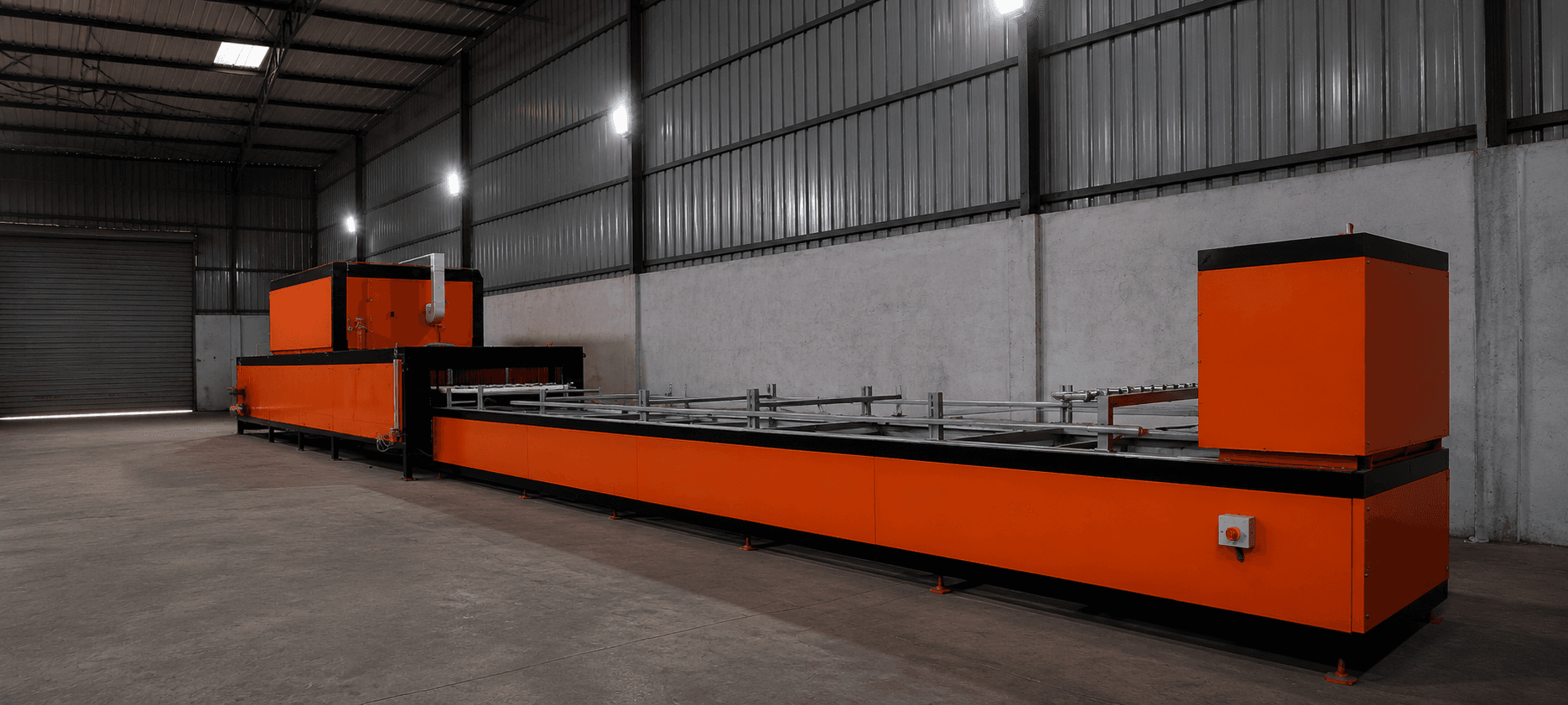

A specialist curing oven designed for thermal sublimation transfer of wood-grain, stone, and custom patterns onto powder-coated aluminium extrusions — delivering a durable, photo-realistic decorative finish.

• Optimised temperature uniformity for sublimation transfer film bonding
• Suitable for aluminium doors, windows, profiles, and architectural extrusions
• Custom chamber sizing for profile lengths and batch volumes
• Can be combined with standard powder coating line as a finishing stage
